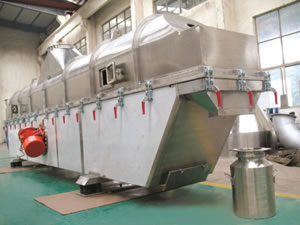

Fluidized Bed Drying Machine

Fluidized Bed Drying Machine

Working Principles of the Fluidized Bed Drying Machine
The fluidized bed drying machine is a highly versatile dryer which is used to dry granules, crystalline and coarse powders, and similar materials for the pharmaceutical, chemical, food, dyestuff and related industries. Operation is quite simple. Raw materials are fed into the fluid bed dryer. Then they move forward continuously while being vibrated and hot air passes through the fluidized-bed to affect heat exchange with the moist raw material. Then the damp air is evacuated through a cyclone separator and duster, and the dry raw material is discharged through the discharge outlet.

Scope of Application of the Fluid Bed Dryer
1. Products for the pharmaceutical and chemical industries: all kinds of pressed tablet and granule products, boric acid, borax, dihydroxybenzene, malic acid, maleic acid, and so on.
2. For foodstuff and construction material industries: lees, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds, etc.
3. The fluidized bed drying machine also can be used for raw materials to add up damp or cooling and so on.

Technical Parameters of the Fluidized Bed Drying Machine
Model (ZLG) A B C D E F G.W(kg)
3.0x0.30 3000 300 1350 900 430 1650 1250
4.5x0.30 4500 300 1350 900 430 1650 1560
4.5x0.45 4500 450 1550 950 430 1700 1670
4.5x0.60 4500 600 1650 950 430 1700 1910
6.0x0.45 6000 450 1650 1000 430 1700 2100
6.0x0.60 6000 600 1700 1000 500 1700 2410
6.0x0.75 6000 750 1850 1000 600 1850 2340
6.0x0.90 6000 900 2000 1000 600 1850 3160
7.5x0.60 7500 600 1850 1000 600 1850 3200
7.5x0.75 7500 750 2000 1000 600 1850 3600
7.5x0.90 7500 900 2100 1000 600 1850 4140
7.5x1.20 7500 1200 2500 1150 800 2050 5190
Model(ZLG) Fluidized-bed (m2) Temp of inlet (℃) Temp of outlet (℃) Capacity of vaporize moisture(kg/h) Vibration motor
model Power (kW)
3.0x0.30 0.9 70-140 40-70 20-35 ZDS13-6 0.8x2
4.5x0.30 1.35 70-140 40-70 35-50 ZDS18-6 0.8x2
4.5x0.45 2.025 70-140 40-70 50-70 ZDS18-6 1.1x2
4.5x0.60 2.7 70-140 40-70 70-90 ZDS18-6 1.1x2
6.0x0.45 2.7 70-140 40-70 80-100 ZDS20-6 1.5x2
6.0x0.60 3.6 70-140 40-70 100-130 ZDS25-6 1.5x2
6.0x0.75 4.5 70-140 40-70 120-140 ZDS30-6 2.2x2
7.5x0.60 4.5 70-140 40-70 130-150 ZDS30-6 2.2x2
7.5x0.75 5.625 70-140 40-70 150-180 ZDS40-6 3.0x2
7.5x0.90 6.75 70-140 40-70 160-210 ZDS40-6 3.0x2
8.5x0.90 7.65 70-140 40-70 200-260 ZDS40-6 3.0x2
8.5x0.90 8.5 70-140 40-70 200-280 ZDS40-6 3.0x2

Features of the Fluidized Bed Drying Machine
1. In the fluidized bed drying machine, raw material is heated evenly, heat exchange is fully accomplished, and drying capacity is high. Compared with ordinary driers, the energy saved is approximately 30%.
2. The vibration is created by motor. It is stable in operation and convenient to maintain, with low noise and long life
3. The fluidized state is stable with no dead angle phenomenon.
4. The drying machine is well regulated and has wide application.
5. It causes little damage to the surface of the raw material, so the drying equipment can be used for drying raw materials that are easy broken. The drying effect is not affected even if the raw materials have anomalous shape.
6. The fluidized bed drying machine prevents pollution of the raw material from outside air, because the equipment uses a fully closed structure.

Our company is a key fluidized bed drying machine manufacturer in China. We offer fluidizing drying equipment, a vacuum harrow drying machine, food flavor granulating drying machine, a circle vibrate sieve, etc.
