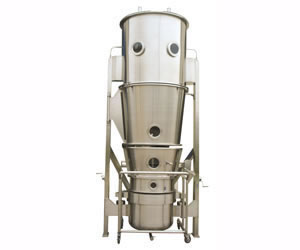

Fluid Bed Granulator

Fluid Bed Granulator

General of Applications
The fluid-bed granulator is a new style of coating equipment that combines spraying technology and fluid-bed coating together. As a result, it can achieve uniform and continuous coating of the product surface.
The fluid bed granulator is widely used in coating powdered, granular, and pelleted material, slow-release control film coating, matrix slow-release control coating, moisture-proof coating, and more.

Features of Fluid Bed Granulator
1. The fluid bed granulator can be used for coloration, taste masking, moisture-proofing, anti-oxidation, heat insulation, and separation coating for powder, granular, and pellet raw materials.
2. Excellent dispersing of the products ensures no adhesion.
3. A short distance to move for spray drying and no coating material loss contribute to a low production cost.
4. The inverted centrum for deceleration and middle round pipe for acceleration make it possible to coat micro-granule, small and large granule, and micro-pellet materials.

Technical Parameters of the Fluid Bed Granulator
Item 3 5 15 30 60 120 200
Capacity Kg/batch 1.5-4.5 4-6 10-20 25-40 40-80 80-150 150-250
Container volume L 10 16 50 100 210 410 660
Powder of fan kW 3 4 5.5 7.5 15 18.5 22
Consumption of compressed air m3/min 0.25 0.35 0.6 0.85 1.1 1.6 2.2
Consumption of steam Kg/h Electric 8 kW 50 65 90 180 280 350

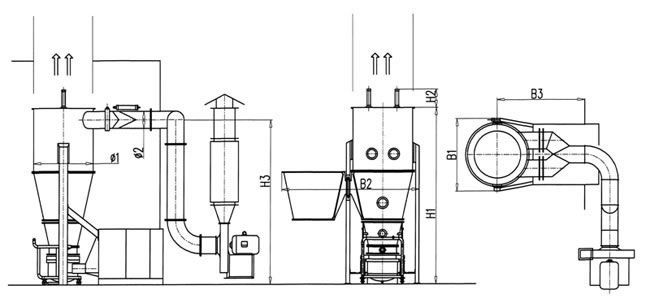

Size for reference H1(mm) 1950 2360 2850 3120 3220 3450 3660
H2(mm) 310 310 340 340 490 590 690
H3(mm) 1750 2030 2530 2800 2900 3130 3350
φ1 400 550 700 1000 1200 1600 1800
φ2 150 180 250 250 280 280 315
B1(mm) 660 1050 1160 1460 1660 2060 2260
B2(mm) 1200 1650 1860 2460 2860 3660 4060
B3(mm) 880 950 1400 1500 1600 1800 2000

Related Names
Fluid-bed Pelletizing Facility | Fluidized Bed Granulating Device | Fluidized Laver Pellet Machine | Fluidizer Prilling Equipment
